Central Venous Catheter Set

1061 - Single Lumen | 1062 - Double Lumen | 1063 - Triple Lumen
Central Venous Catheter Set


For administration of hyperosmolar solutions, measuring CVP, haemodialysis, plasmapheresis, rapid infusion of fluid etc.
Specially formulated, soft, kink resistant and extremely biocompatible polyurethanematerial provides strength during insertion
Polyurethane softens at body temperature within minutes of insertion in the body to conform to the body tissues and thus reduces the risk of vascular trauma
Specially designed soft & beveled tip for smooth & easy insertion of catheter
Soft flexible J-Tip guide wire prevents the vessel perforation and also provides good torqueto ensure firm insertion
Radio-opaque catheter with clear and definite marking for correct placement of catheter tip
Individually blister tray packed

Lumens (1062 and 1063)

Separate non-communicating vascular access lumens within a single catheter body reduces the necessity of utilizing multiple venipuncture
Exit ports of individual lumens are separated by appropriate distance in proportion to the catheter's french size
Coaxial catheter design maximizes inner diameter of central lumen for high flow rates
Proximal lumen for blood sampling, medications and blood administration
Distal lumen for CVP monitoring, blood administration and medication
Medial lumen exclusively for total parenteral nutrition (Triple Lumen CVC)

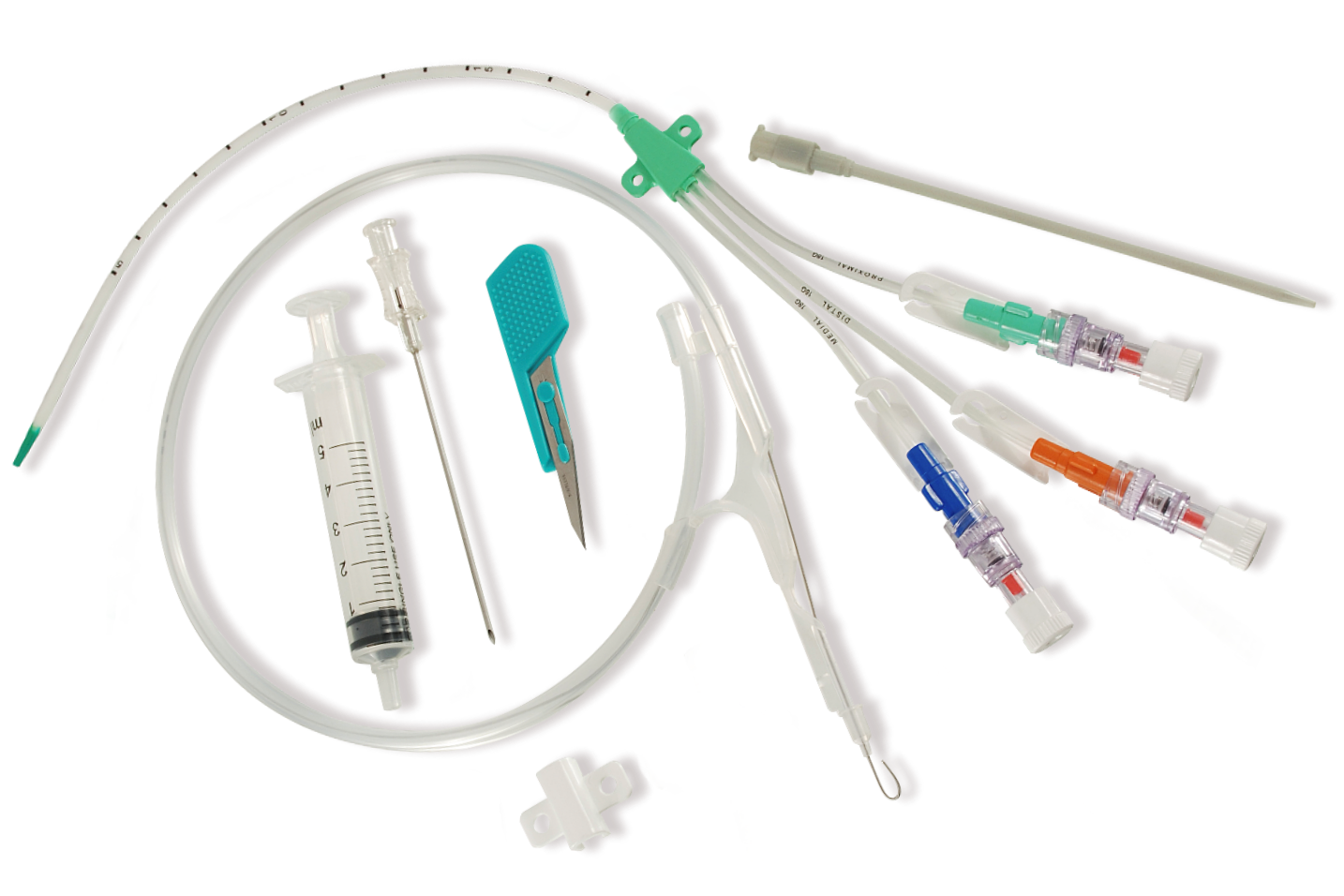

Soft tip Polyurethane catheter
“J” tip Guide Wire with dispenser
“Y” shaped Introducer Needle
Tissue dilator
Suture wing and clamp fastener
Extension Line clamp
Syringe 5ml
Injection site
Hypodermic needle (20G x 25mm)
Needle sponge


Central Venous Catheter
Introducer Needle
J-Tip Guide Wire
Vessel Dilator
Syringe (Luer Lock)
Catheter Holder
Catheter Holder Clamp
Extension Line Clamp
Injection Cap
Description LumenSize Lumen Gauge Catheter Length
Single Lumen
3 Fr 20G 13 / 15 / 20 cm
4 Fr 18G 13 / 15 / 20 cm
5 Fr 16G 16 / 20 / 30 cm
6 Fr 14G 16 / 20 / 30 cm
Double Lumen
4 Fr 22G(Proximal) - 20G (Distal) 13 / 16 cm
7 Fr 16G(Proximal) - 16G (Distal) 16 / 20 / 30 cm
Triple Lumen
5.5 Fr 22G(Proximal) - 20G (Distal) - 22G(Medial) 8 / 16 cm
7 Fr 18G(Proximal) - 16G (Distal) - 18G(Medial) 16 / 20 / 30 cm
