I.V. INFUSION SET
1041-1050
 |
 |
 |

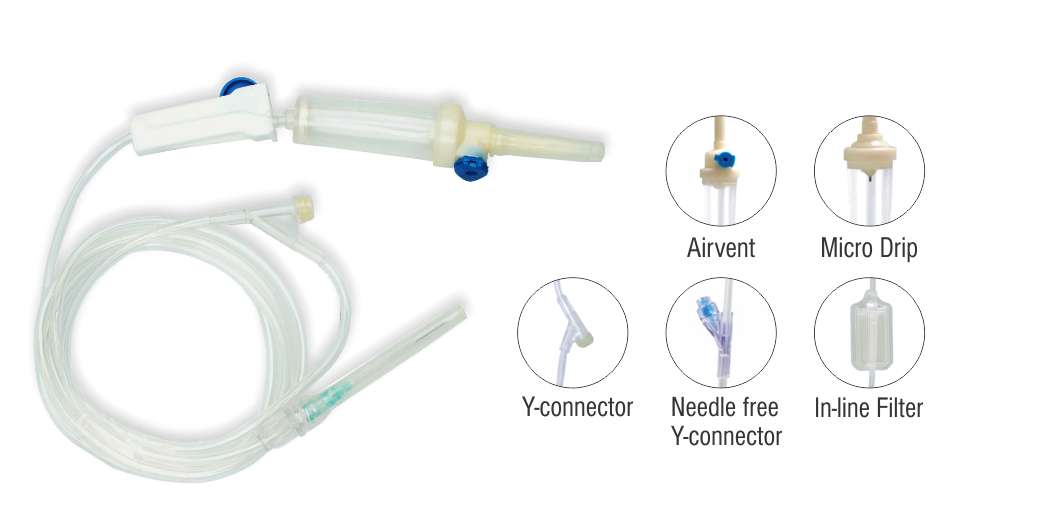

| Airvent | Micro Drip | |
 |
 |
|
| Y-connector | In-line Filter | |
GENERAL FEATURES:
Suitable for administration of Infusion fluid for medical therapy
Built-in airvent fitted with bacteria barrier hydrophobic filter with snap cap to prevent the air contamination of fluid
Strong and sharp piercing spike for easy insertion in I.V. container
Clear, transparent and flexible drip chamber facilitates visualisation and rapid adjustment of fluid level
Disc filter in the drip chamber to ensure filtration of administered fluid
Efficient roller controller for accurate and unrestricted flow
Soft, transparent and kind resistant PVC tubing with standard length of 150 cms for easy visualisation of flow
Moulded, self-sealing latex bulb for extra medication & easy flushing
Also available with 0.2 micron IV in-line filter for filteration of microbes and prevention of air embolism hazard (Product code # 1050)
OPTIONS AVAILABLE:
Air vented or Non vented spikeWith or without needle
"Y" connector (latex or latex free)
Needle free Y-site
Luer lock or luer slip
Flow regulator integrated into Infusion set for precise flow control
DEHP free kink resistant tube to prevent phthalate related complications
With customized tube length
| Ref./Art. No. |
Product | Specification | Drop Rate |
| 1041 | PRODRIP I.V. Infusion Set |
Tube I Ø : 2.70 mm, plain latex, Needle 21G |
Approx. 20 drops/ml |
| 1042 | PRODRIP I.V. Infusion Set with Airvent |
Tube I Ø : 2.70 mm, plain latex, Needle 21G | Approx. 20 drops/ml |
| 1043 |
PROFUSION I.V. Infusion Set |
Big drip chamber, Tube I Ø : 3.00 mm, bulb latex, Needle 21G |
Approx. 20 drops/ml |
| 1044 |
PROFUSION I.V. Infusion Set with Airvent |
Big drip chamber, Tube I Ø : 3.00 mm, bulb latex, Needle 21G |
Approx. 20 drops/ml |
| 1045 |
PROFUSION MICRO I.V. Infusion Set with Micro Drip |
Micro drip chamber, Tube I Ø : 3.00 mm, bulb latex, Needle 23G |
Approx. 60 drops/ml |
| 1048 |
PROFUSION ULTRA I.V. Infusion Set Premium |
Large drip chamber, DEHP free tube I Ø : 3.00 mm, Y-connector, luer lock, Needle 21G |
Approx. 20 drops/ml |
| 1050 |
PROFUSION GUARD I.V. Infusion Set with in-line Filter |
0.2 micron filter, Large drip chamber, DEHP free tube I Ø : 3.00 mm, Y-connector, luer lock, Needle 21G |
Approx. 20 drops/ml |
