PROTEK

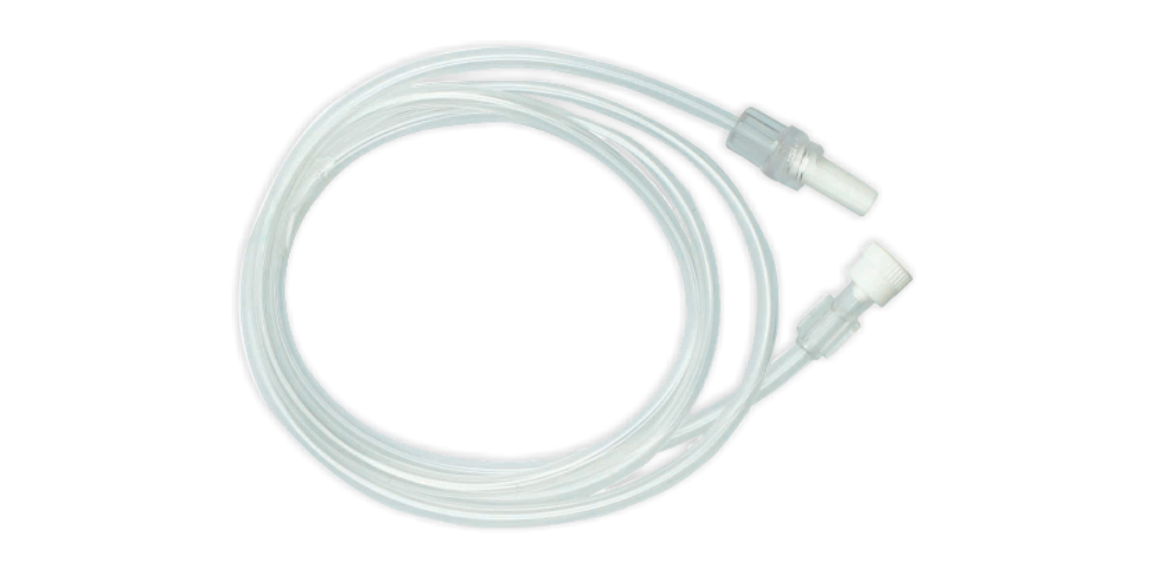

Low Pressure Extension Line
1033
• Designed to make administration of fluids more convenient and suitable for low pressure applications
• Minimizes the movement at cannulation site by taking fluid administration site away from the insertion site thereby reduces the chances of infection and mechanical irritation
• Soft, transparent and kind resistant PVC tubing
• Fitted with male and female luer locks for secure connection For pressures upto 4.5 bar (60 psi)
• Tube length: 25, 50, 75, 100, 125, 150, 200, 250 cms
• Extension tube: I Ø - 3.0 mm, O Ø - 4.1 mm
PROTEK

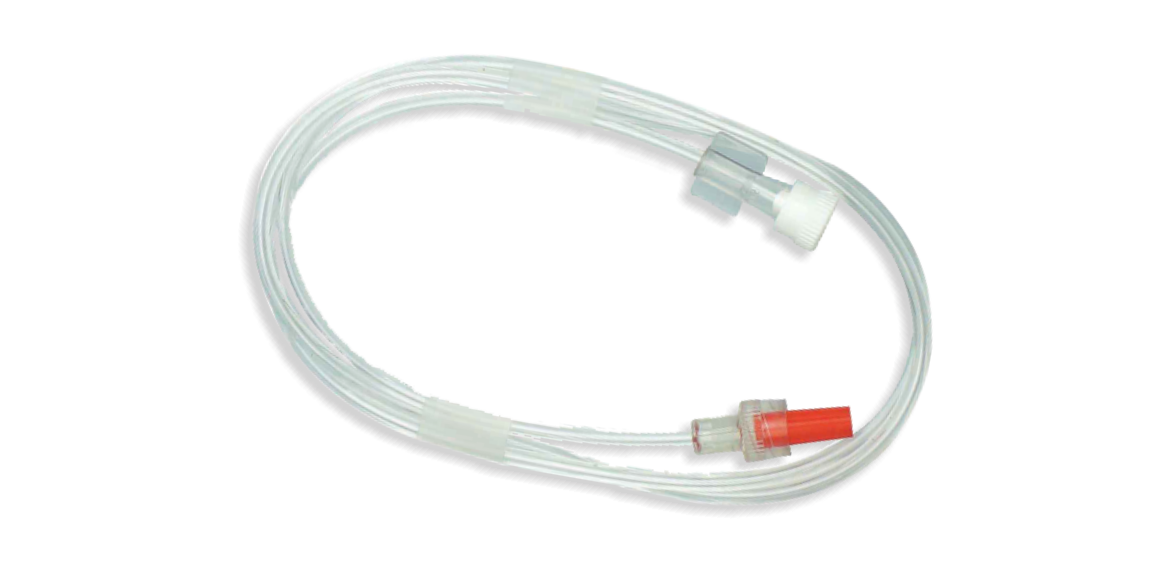

High Pressure Extension Line
1034
Designed for arterial blood pressure monitoring
Soft, transparent and kind resistant PVC tubing
Fitted with male and female luer locks for secure connection
For pressures up to 55 bar (800 psi)
Tube length: 25, 50, 75, 100, 125, 150, 200, 250 cms
Extension tube: I Ø - 1.5 mm, O Ø – 3.0 mm
Optional: Male - Male connection at both ends
